What is a 3D vertical lifting device?

2026-04-06 16:36:56

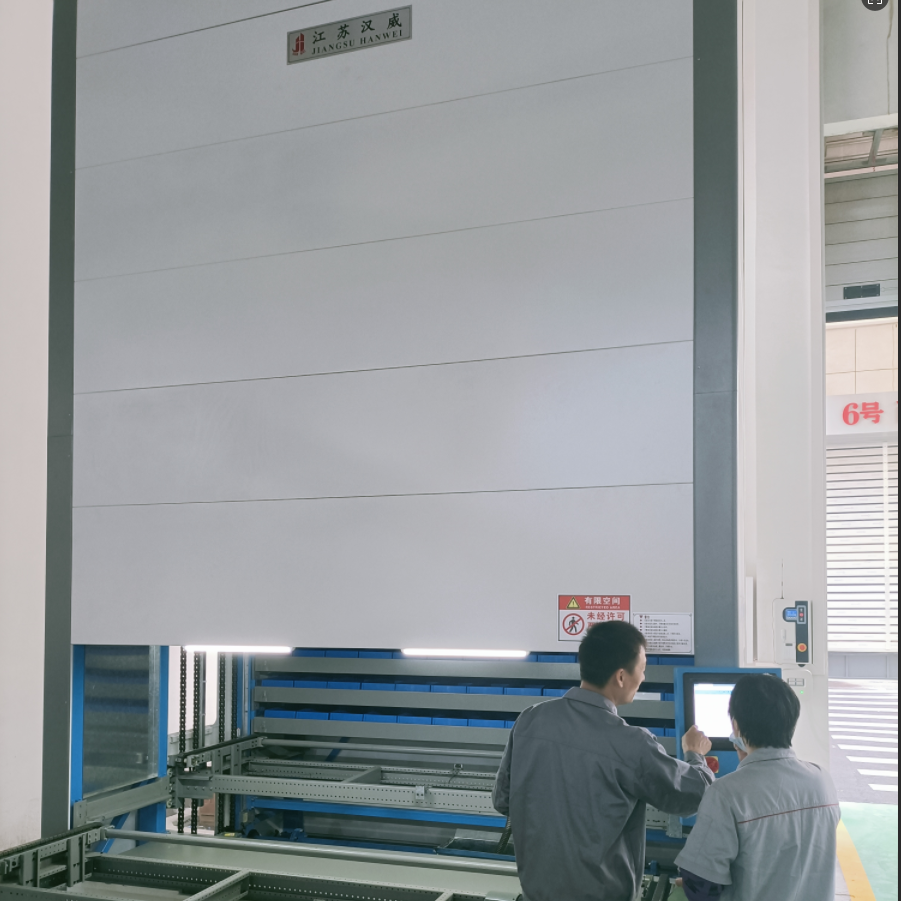

Three Dimensional Vertical Lift is an industrial equipment that can achieve precise movement in three spatial dimensions: X (horizontal), Y (vertical), and Z (vertical). It is mainly used for material handling, workpiece positioning, personnel lifting, and multi-directional displacement operations in automated production. It is widely used in automotive manufacturing, painting and polishing, warehousing and logistics, and maintenance of large venues.

Core functions and working principles

The Three Dimensional Vertical Lift achieves flexible positioning in three-dimensional space by integrating a multi axis motion system

Lateral horizontal movement (X-axis): achieve left and right movement along the ground track or guide rail

Longitudinal horizontal movement (Y-axis): achieve forward and backward expansion and contraction along double columns or tracks

Vertical lifting motion (Z-axis): up and down lifting is achieved through chains, screws, or hydraulic systems

Three Dimensional Vertical Lift drive mode: commonly electric drive (battery or cable power supply), some use hydraulic systems, and support continuously variable transmission

Three Dimensional Vertical Lift control mode: manual button, foot switch or remote control panel, some high-end models support PLC automatic control
