The Intelligent Selective Lift Storage System achieves precise and efficient storage and retrieval of goods through the coordinated operation of vertical lifting and horizontal movement, combined with automation control technology. Its core principle is the three in one operation mode of "pallet unit+extractor+intelligent scheduling".

1、 Basic structural composition

The Intelligent Selective Lift Storage System mainly consists of the following key components:

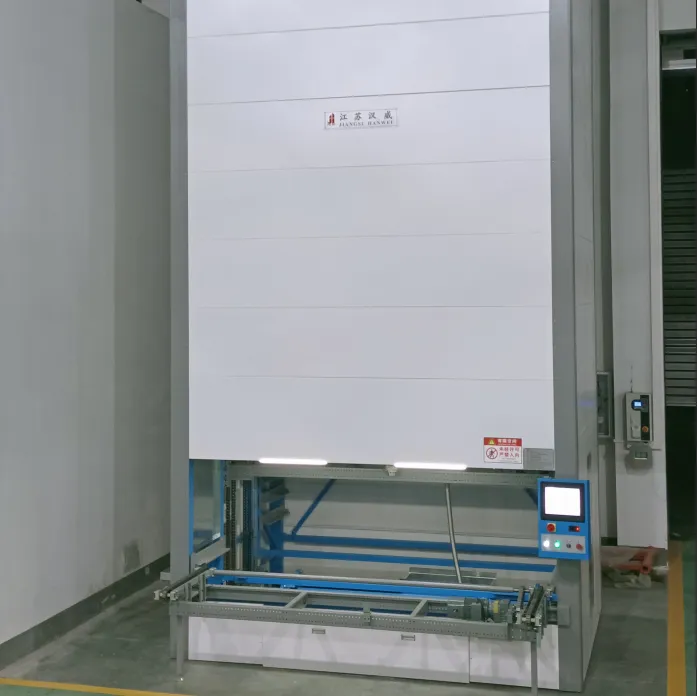

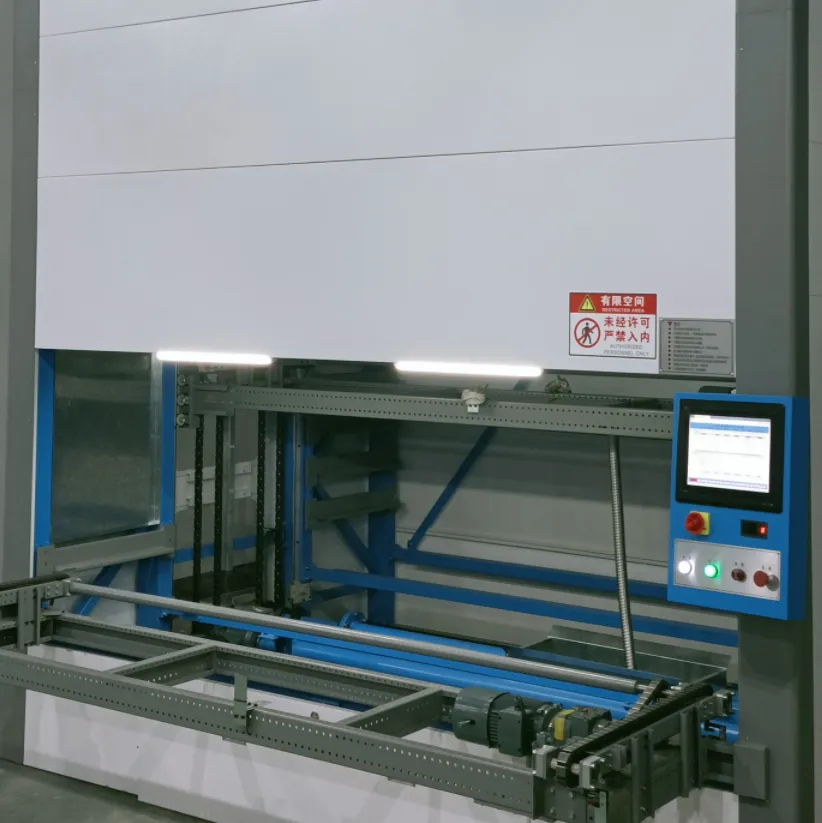

Vertical cabinet: enclosed steel structure frame, expanding storage space upwards, typically 2-10 meters in height.

Tray storage unit: Using standard trays as carriers to carry goods, vertically layered and stored inside the cabinet.

Extractor: an intelligent handling device located in the middle of the cabinet, with dual movement capabilities of lifting and forward and backward translation.

Automatic height measurement device: equipped with sensors at the entrance, real-time detection of tray height, and dynamic optimization of space allocation.

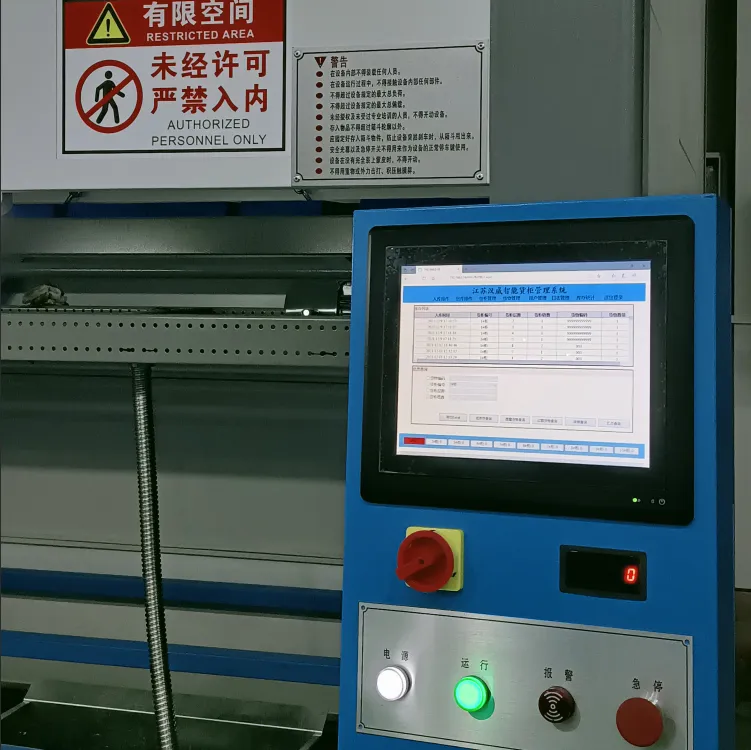

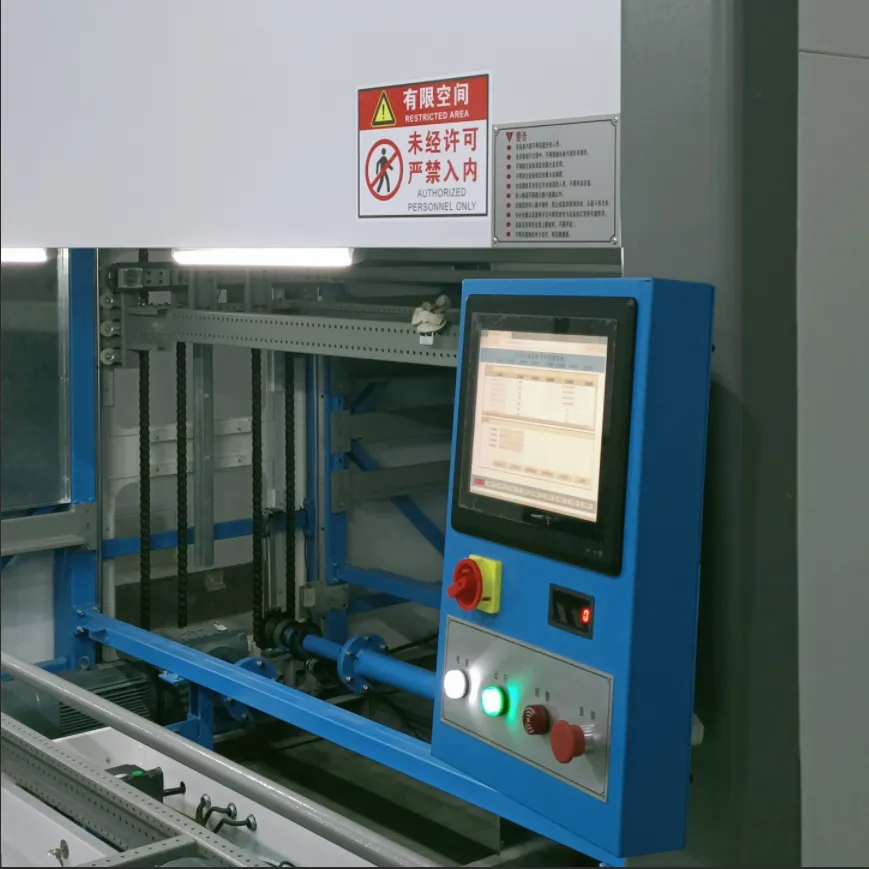

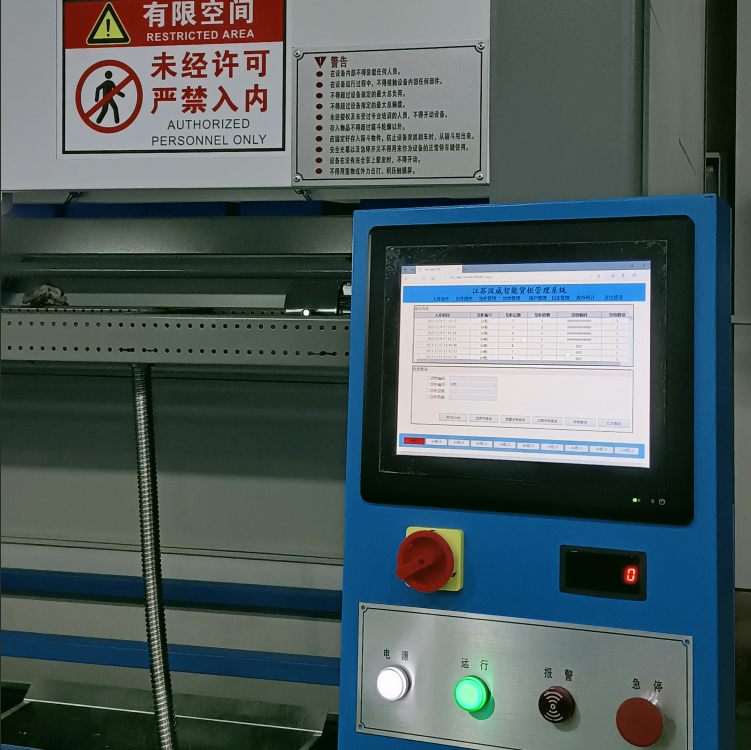

Human computer interaction terminal: touch screen operation interface, supporting functions such as barcode scanning, password verification, and permission management.

2、 Detailed explanation of workflow

Deposit process

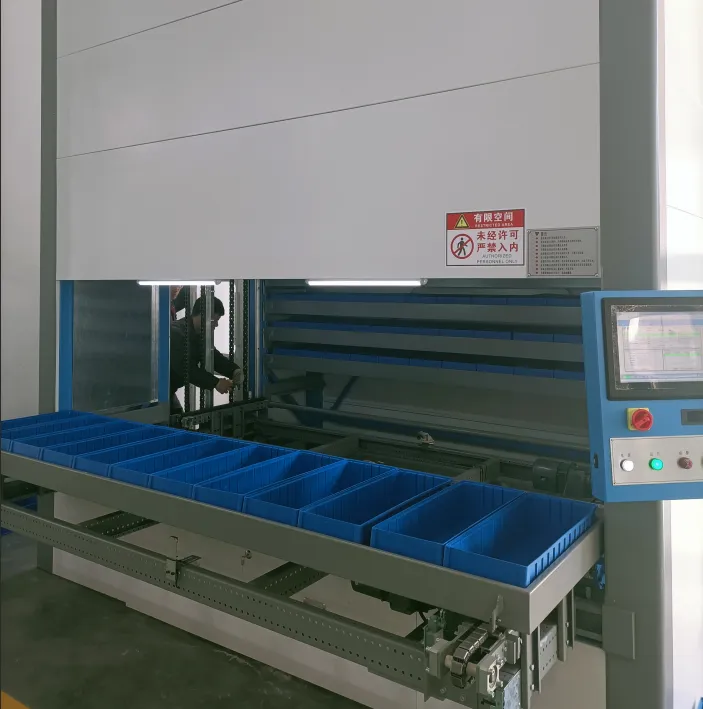

The operator places the tray containing materials on the entrance platform;

The Intelligent Selective Lift Storage System identifies the height of the pallet through an automatic height measurement device and intelligently calculates the optimal storage location based on the current space status inside the cabinet;

The extractor is lifted and lowered to the corresponding layer, and the pallet is fed into the designated cargo compartment without the need for manual lifting or handling throughout the entire process.

Extraction process

Users input material numbers or scan barcodes at the terminal;

Control system locates the location of the target tray;

The extractor automatically runs to this layer, takes out the tray and transports it to the pickup window, achieving the "goods to people" operation.

The entire process takes an average of less than 30 seconds, significantly reducing the walking and searching time in the traditional "people looking for goods" mode.

3、 Core technical support

PLC automatic control technology: realizes logical control and safety interlocking of equipment operation, ensuring precise and reliable actions.

Optiflex intelligent space allocation algorithm: finely partition storage height in units of 25 millimeters, dynamically compact layout, and increase space utilization by up to 300%.

System integration capability: Support integration with enterprise management systems such as ERP, MES, WMS, etc., to achieve real-time synchronization of inventory data and full process traceability.
